When temperatures hit cryogenic levels—think 320 degrees below freezing—things can get a little stiff. Not for Hamilton. When a clean energy and industrial gas company needed a custom trailer to move their cryogenic centrifugal pumps, we delivered a solution as cool as the cargo.
Transporting these massive metal pumps required a trailer that doesn’t flinch. Our design proved to be as flexible as it is tough, with these standout features:

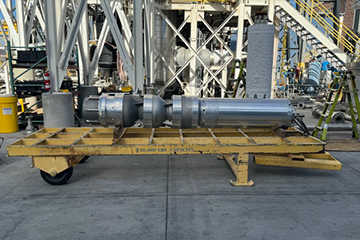

• Adjustable steel cradles: Rubber-lined for extra protection and removable to accommodate two different pump sizes (4 feet in diameter x 20 feet long, 2 feet in diameter x 10 feet long)
• Tie-downs galore: Lashing rings and multiple tie-down points ensure a secure ride, even during sharp turns
• Forklift-friendly steering coupler: Oversized to handle massive forks and tight corners with ease
Need a custom trailer that stays cool under pressure and brings the heat to your bottom line? Contact our Sales Team today.
Previous trailer

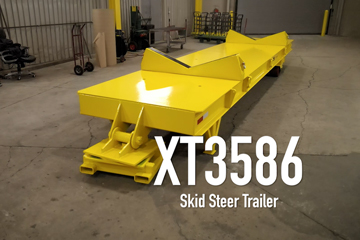

XT3586 – Skid Steer Trailer
- Trailer type: Semi-live skid
- Capacity: 30,000 lbs.
- Deck Size: 60" wide x 288" long
- Deck Material: Steel sheet welded to channel frame
- Running Gear: (2) 18 x 9 press-on polyurethane wheels with tapered bearings in rear
- Superstructure: 2 removable /adjustable steel cradles w/ rubber liner to protect load; lashing rings included for tie downs
- Coupler: Pivoting fork pockets
- Finish: Safety yellow
