Order Picker Carts & Platforms

Capacity Range: 1500 - 4000 lbs.

Hamilton Caster’s line of industrial order picker carts and platforms offers indispensable forklift accessories that allow easy picking, loading, moving and delivery of materials from warehouse racks to their final destination in the plant. They are secured to the order picker by the picker’s clamping mechanism, and lifted with the operator to the appropriate level. The warehouseman/operator maneuvers the platform alongside storage racks and transfers product to the cart. Once full, the cart is lowered to the floor, unclamped and hand pushed or power towed about the factory to the shop floor or to the shipping dock. Provide a specification sheet of your make and model order picker and Hamilton will provide a cart designed specifically for your material handling needs.

Greater strength, safer operation and adaptability to varying requirements has won preference for Hamilton's Order Picker Cart among material handling consultants and warehouse employees.

Quality Features
  • Rugged design for safe, trouble-free operation
  • Safety locking device for any make forklift
  • Choice of platform sizes, wheels, racks and sockets

This four-wheel platform truck is specially designed for forklift “order selector” system that can cut stock-picking cost 50% or more. One worker achieves remarkable output, as the need to remove and re-spot entire pallet loads is eliminated. Instead ELEVA-TRUCK® accompanies the operator up to the merchandise, which is accumulated directly onto the deck. Thus more warehouse “cube” can be utilized by permitting retrieval of merchandise from high vertical racks.

ELEVA-TRUCKS® can be designed to fit any application, and they may also be equipped with couplers for towing.

Certain important features are required on this type of truck:
  1. Sturdy, all-welded steel frame;
  2. Longitudinal fork pockets under the deck afford maximum safety and strength;
  3. Compatibility with forklift manufacturer’s locking device;
  4. Removable pipe rack(s) to fit into pipe sockets on the ends and/or sides of truck.

On-site visits available.

For pricing call us: 1-888-699-7164.

Request a Quote

CAUTION!

Anyone working aboard a platform or cart elevated above floor level should wear a safety harness or similar device fastened to the powered forklift. It is the responsibility of the USER to insure safe operation of equipment in the workplace.

COMMON SPECIFICATIONS
  • Platform sizes to suit; popular widths 42" or 48", lengths 84" or 96".
  • Capacities from 1,500 to 4,000 lbs.
  • Wheels are 6” or 8” diameter to suit capacity and select from six different wheel types shown below. (Note: to learn about each wheel type, hover over each wheel image).
  • Rectangular tubing used for fork pockets sized and spaced for correct fork lift.
  • Standard with one 36" high removable pipe rack in external sockets with set screws at swivel caster end. Additional racks or sockets if specified.

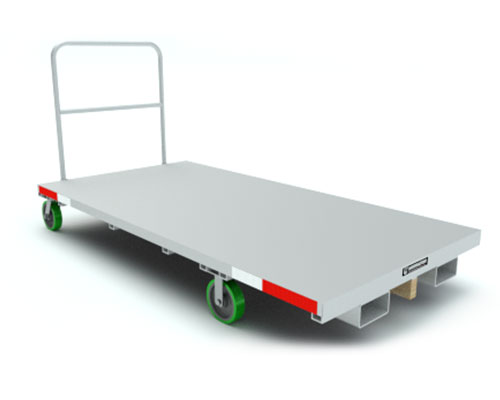

  • Steel Deck:
    • 12 ga. steel deck on 2" channel frame.
    • All Steel design for a durable and economic solution

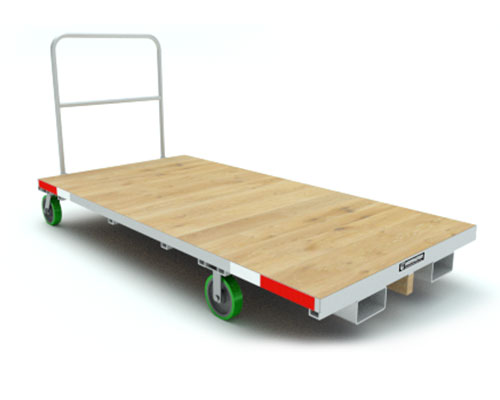

  • Wood Deck:
    • Select hardwood deck in steel angle frame.
    • Provides sound dampening and better load protection
