Perhaps you’ve heard of paint blast rooms—the heavy-duty equivalent of a spa day for metal. These high-temperature chambers are designed to clean, prep and coat large surfaces with pinpoint accuracy and speed. Paint blast rooms are highly specialized to handle large-scale, heavy-duty objects under extreme heat, giving surfaces the full treatment they need to come out polished, protected and looking their best.
So when our customer—a global manufacturer of machinery for construction and mining—needed a custom trailer for hauling heavy objects in and out of their paint blast rooms, they knew they needed a trailer as tough as the paint blast room itself. And guess who they called?
It was perfect timing, really, as the customer was relocating facilities and ready for a Hamilton upgrade. The ask was pretty straightforward: design a trailer that could back in and out of their blast rooms several times a day, withstand intense temperatures (150-degreee heat for up to an hour), and navigate a new plant with cushy conditions—steel-reinforced 16-inch concrete floors with no inclines, ramps, or aisles to maneuver.
The result? A custom-built, heavy-duty trailer that’s as durable as it is dependable. This beast features skid steer capability and can handle up to 50,000 pounds with ease, thanks to its two massive 22” x 10” diameter wheels at the rear. To protect these wheels from the harsh blast media inside the booth, Hamilton equipped the trailer with sealed bearings, ensuring that everything rolls smoothly, no matter what.
Got a custom job that involves extreme temps, heavy loads or tricky conditions? Let Hamilton custom carts add the right muscle to ensure all your applications finish flawlessly.

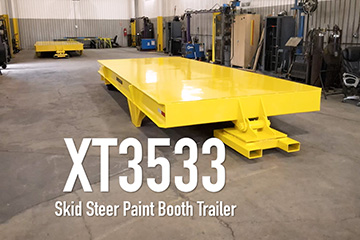

XT3533 - Skid Steer Paint Booth Trailer
- Trailer type: Skid Steer
- Capacity: 50,000 lbs.
- Material: All Structural Steel
- Dimensions: 96" Wide x 240" Long
- Running Gear: (2) 22" diameter x 10" wide dual sets of wheels at rear of trailer
- Finish:Safety yellow
