XT3386 - Underslung Two Wheel Auto-Steer Trailer

Do you have an application where you need to transfer heavy metal inside or outside your facility?  Do you need a low deck height due to moving a tall product, or having low door heights? Are you in the market for a tough and durable trailer?  Have you had an experience where other manufacturer's trailers just didn't hold up?

If so check out XT3386 below, and see how it filled our customer's material handling needs. Hamilton has years of experience and expertise in the design and manufacturing of custom material handling carts and trailers.

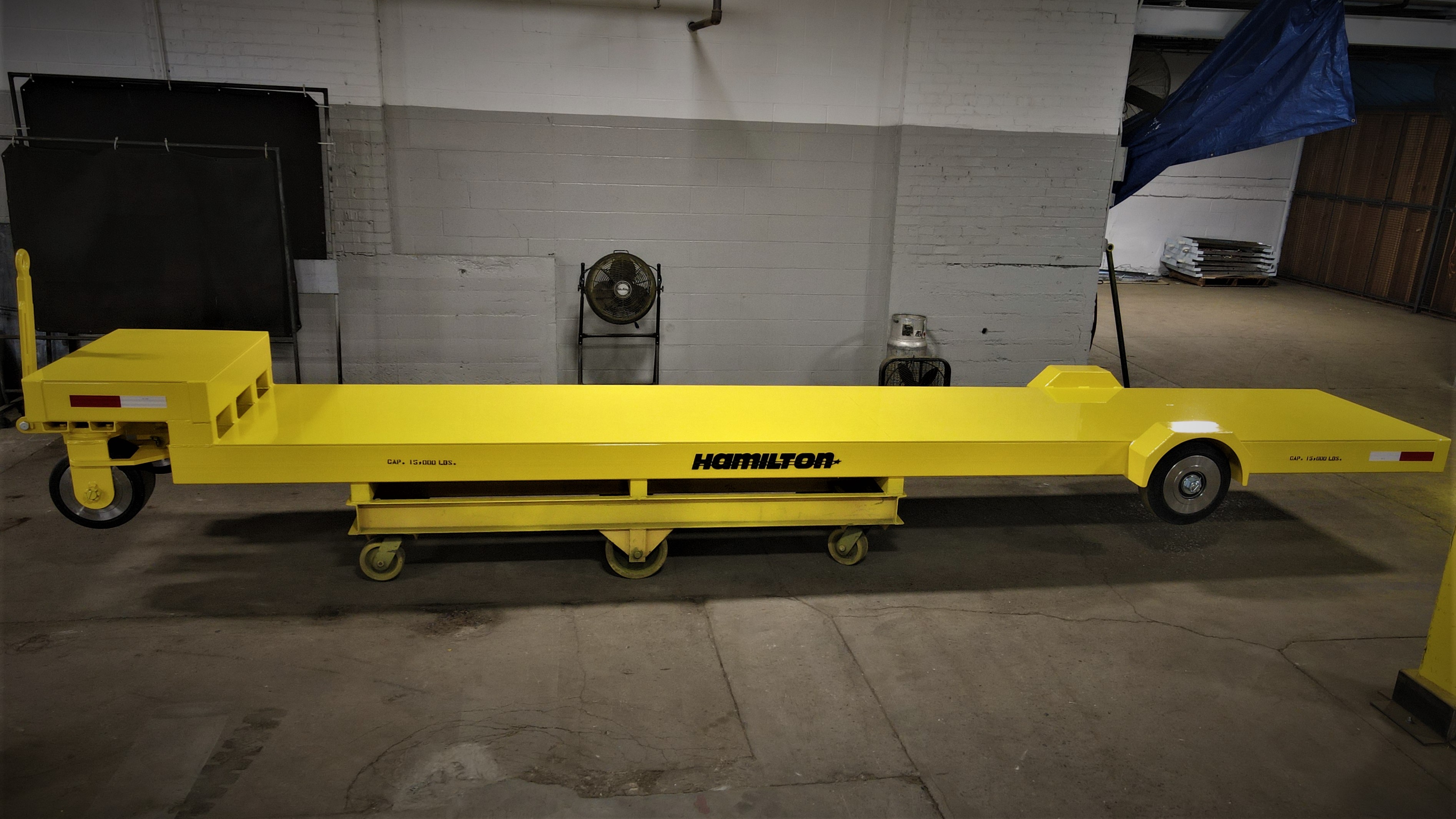

XT3386, low boy, autosteer, press on wheels, underslung, material handling, hamilton carts and trailers

Statement of Understanding -

XT3386 is a two wheel autosteer trailer that is designed specifically to move labratory equipment.  The equipment will be moved over concrete and asphalt, indoors and outdoors.  The move will happen at speeds between 3-5 mph. Movements will happen in a sporadic manner; infrequently.

The underslung deck is to ensure there is enough headroom to get equipment through doorways.

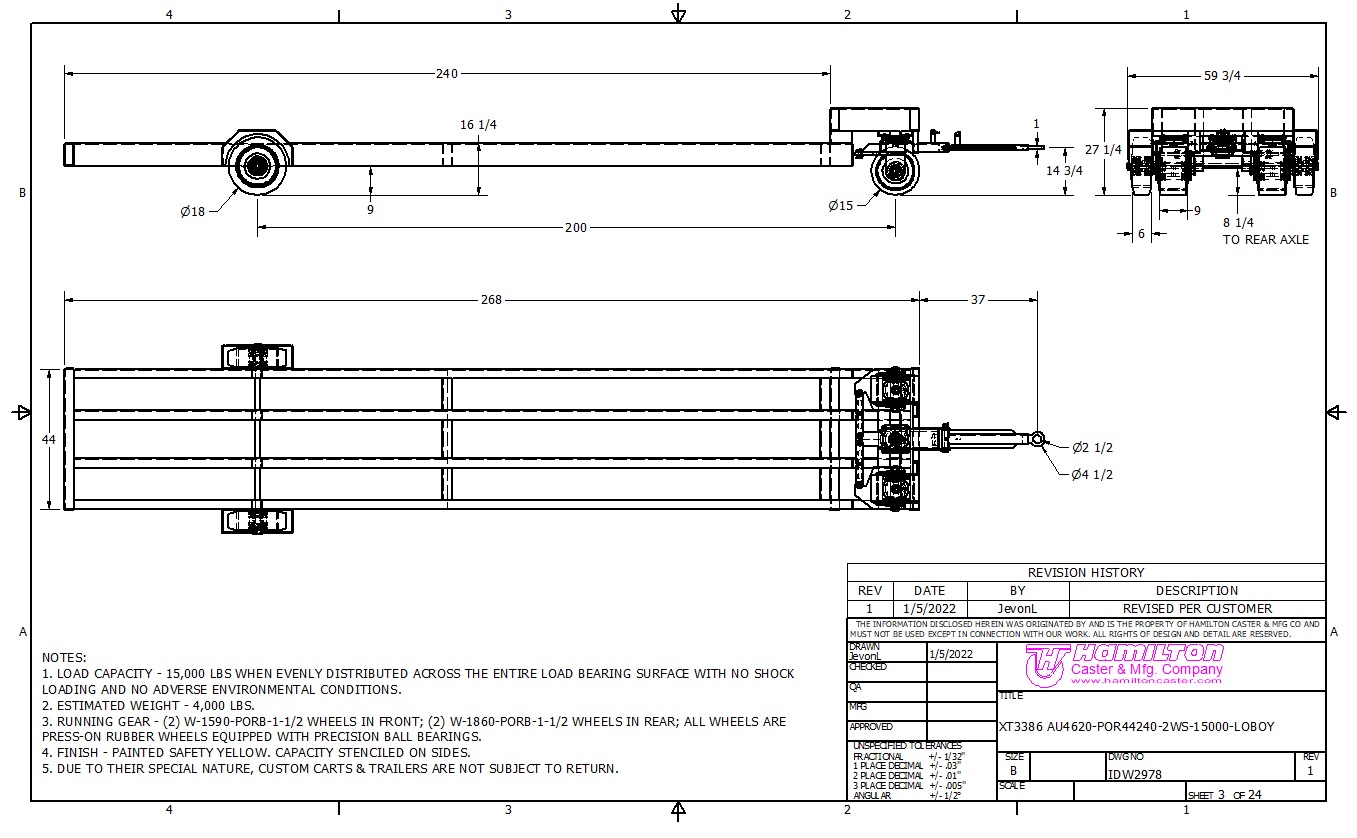

Cart Specifications -XT3386, autosteer, underslung, press ons, material handling, hamilton carts and trailers

Hamilton model number - XT3386

Deck Size - 44" x 240" Usable area

Overall Size - 44" x 268"

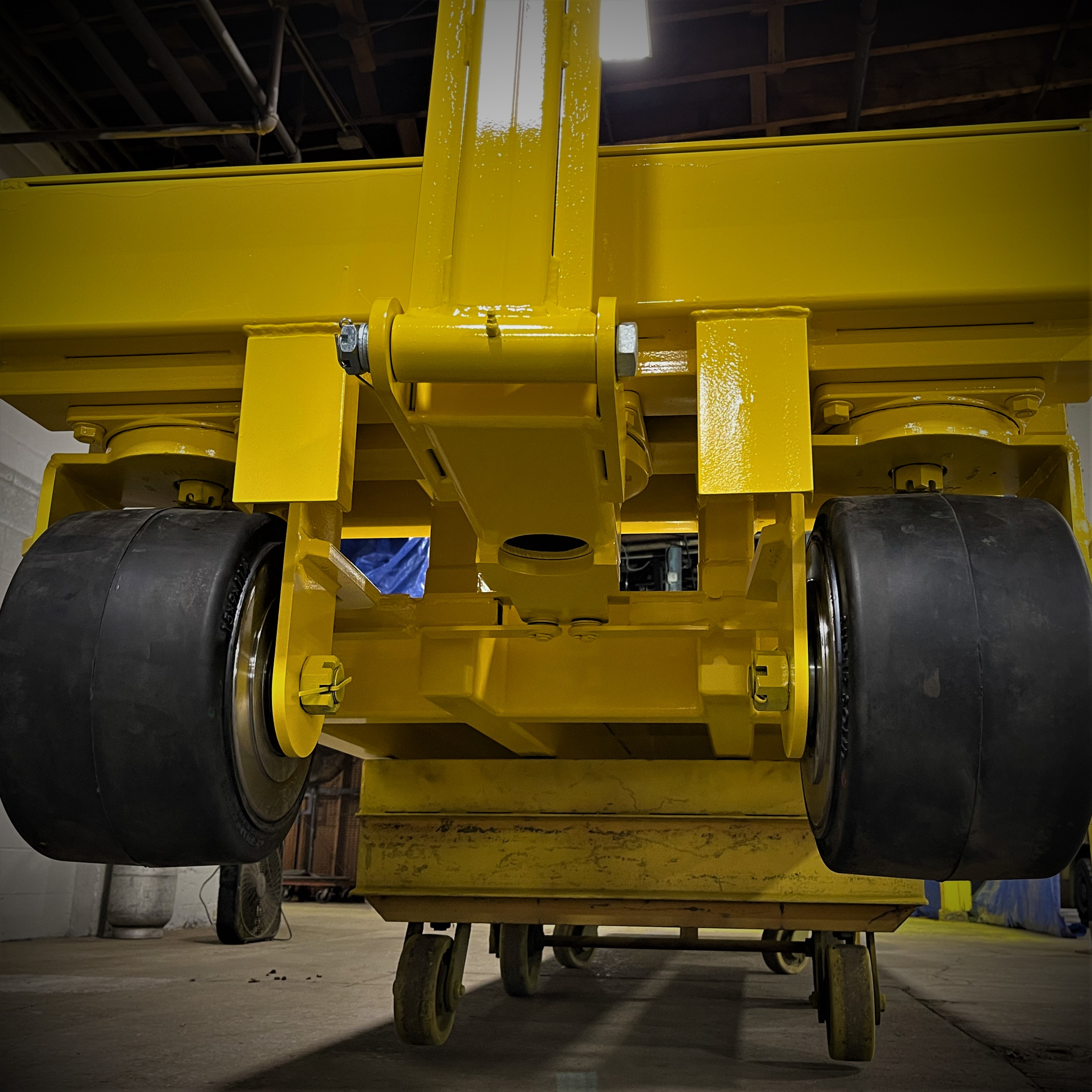

XT3386, autosteer, underslung, press ons, material handling, hamilton carts and trailers

Deck Height - 16-1/4".

Capacity - 15,000 lbs

Trailer Weight – 4,000 lbs

Running Gear – W-1590-PORB-1-1/2 / W-1860-PORB-1-1/2

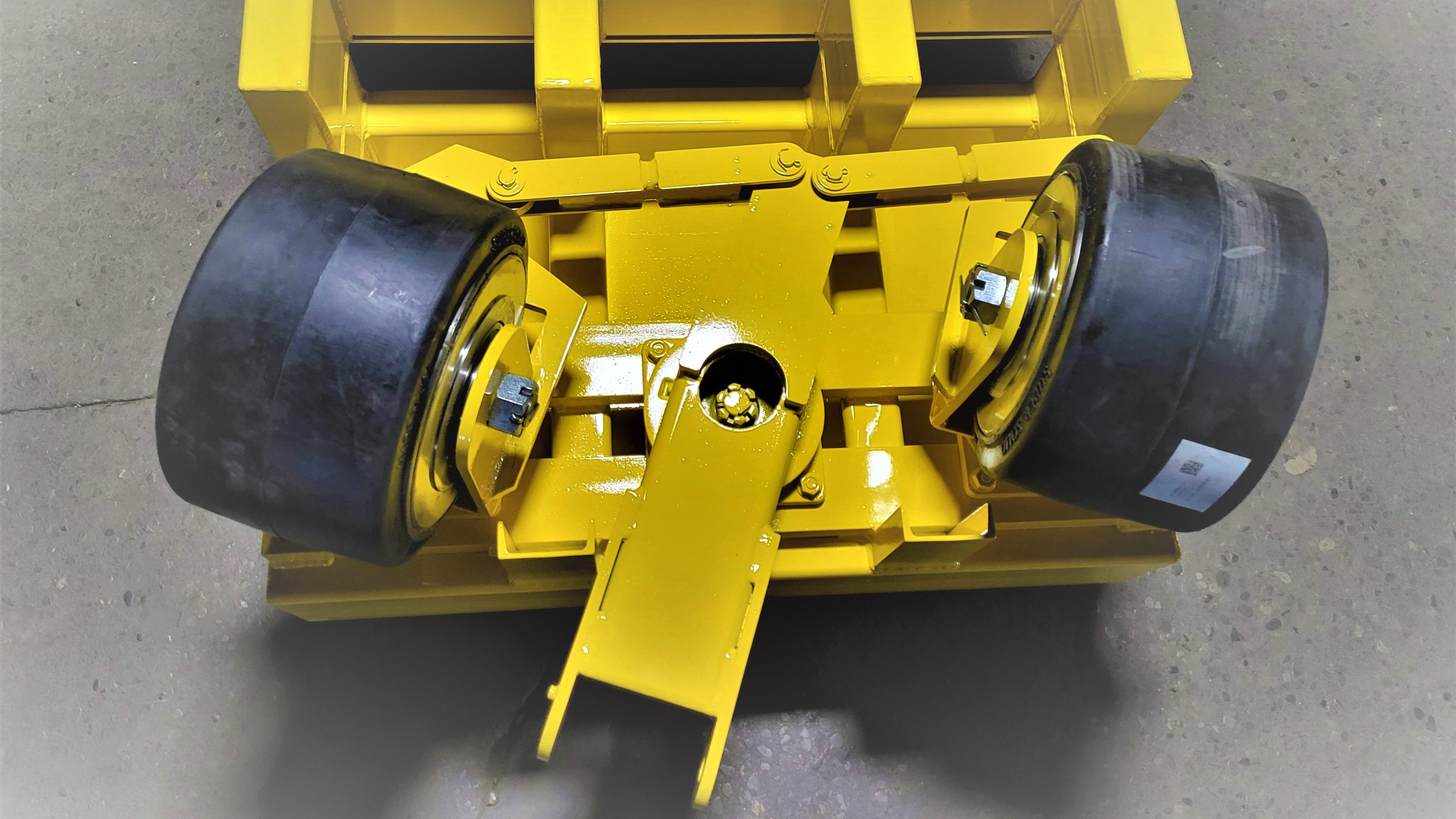

Steering Type - Two wheel auto-steer trailer type

Frame Construction - Steel deck, structural steel frame.

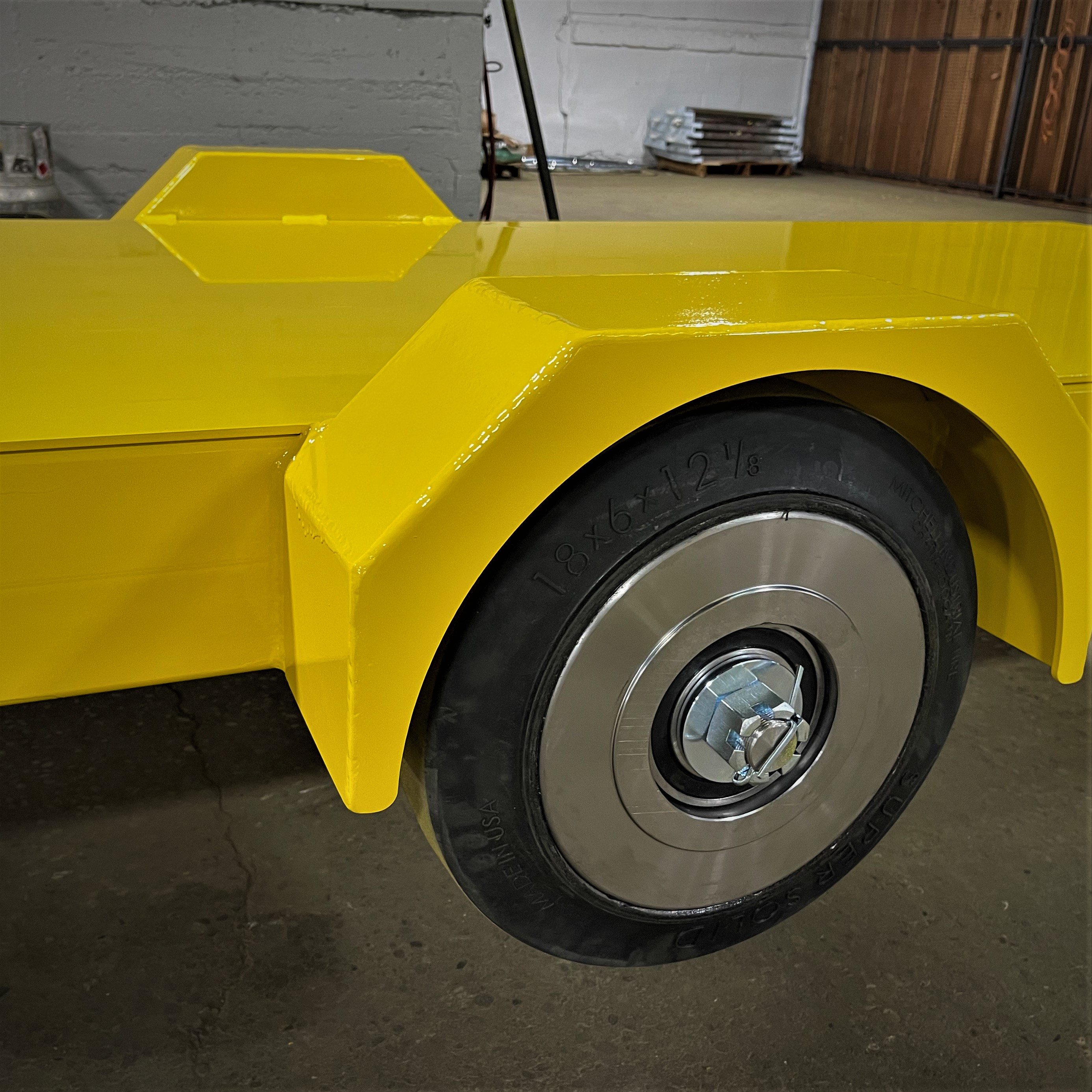

XT3386, underslung, autosteer, press on

Frame Style - Underslung lowboy

Coupler – Loop type towing tongue,

Finish – Safety Yellow Epoxy

Stencil - Load capacity stenciled on both side rails

Safety – ODOT Conspicuity Tape for increased visibility

xt3386, two wheel autosteer trailer, press on poly wheels, underslung, safety yellow, wheel fenders



Customer Profile -

The customer is an U.S. based manufacturer of materials and chemicals.

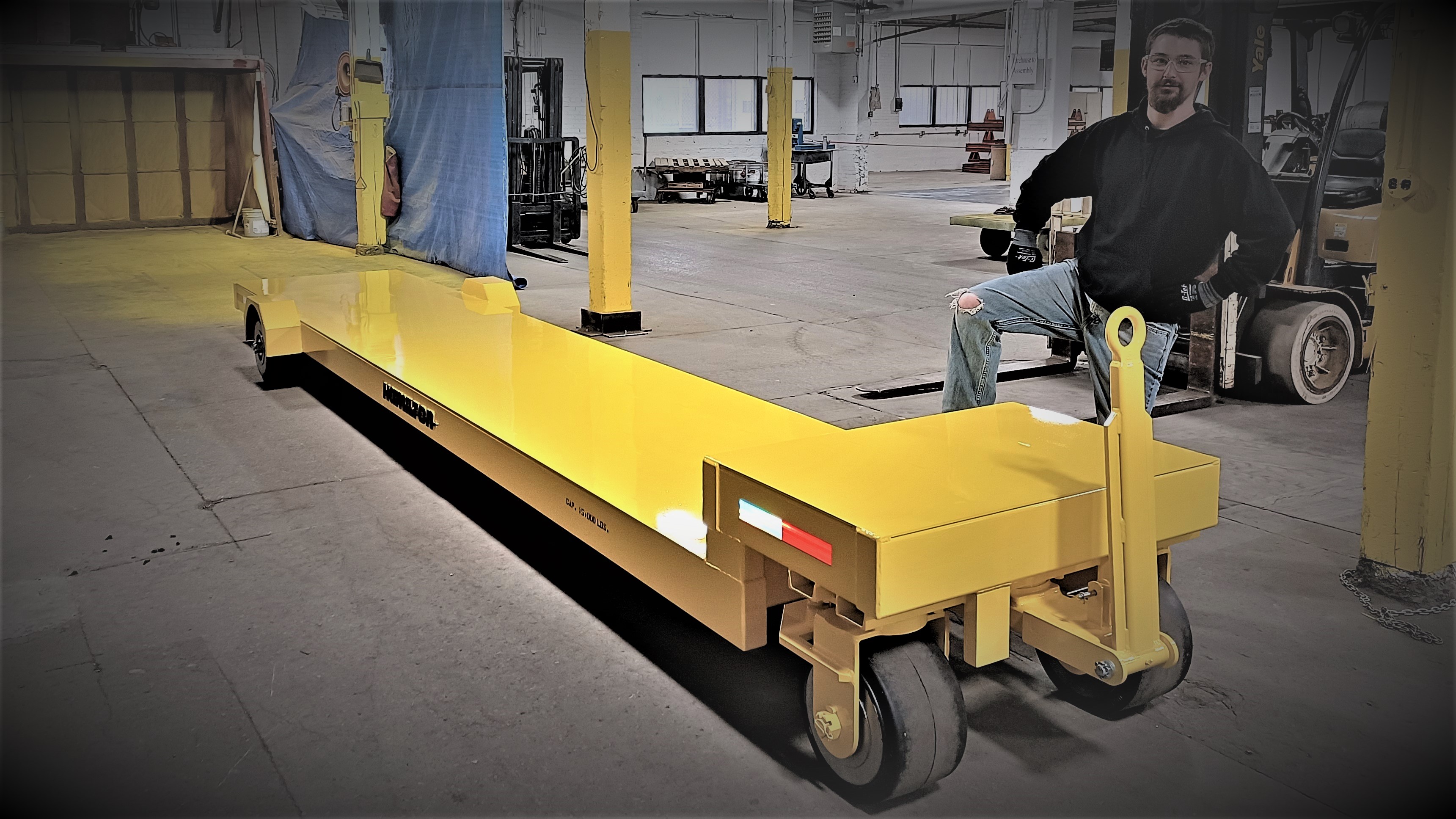

XT2836 - FM4390-POY75300-45000 ALUMINUM BILLET TRUCK, 45,000 LBS
