e-Power Pusher 50K

Push or Pull up to 50,000 lbs.

The EP50K is a heavy duty chain driven electric tugger. A powerful 6hp motor provides 2000 lbs. of push/pull force allowing for easy turning and maneuvering loads up to 50,000 lbs. Commonly used on carts with two straight casters, the 5000 lbs. of lift transfers the weight to the 3 solid fork truck tires. The EP50K is designed to let the wheels of the tugger to turn under most cart tongues, giving it the ability to make a 90° turn to the cart.

Prevents physical strain and pain associated with pushing or pulling heavy carts and other wheeled equipment.

Quality Features
  • Heavy duty steel frame.
  • 150 Amp batteries
  • 2000 lb. differential/transaxle
  • 5000 lbs. hydraulic actuator lift kit
  • Non-marking solid fork truck drive tires

EP50K electric lift kit raises and lowers for quick connection to carts.

Standard pintle hitch attachment.

Optional ball hitch attachment.

On-site visits available.

For pricing call us: 1-888-699-7164.

Request a Quote

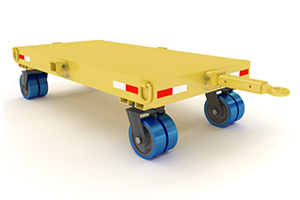

Load Capacity:40,000 lbs
Frame:Structural Steel Channel
Deck:.25" Plate Steel
Deck Height:24.375" (shown -Varies by length)
Platform Dimensions:48" x 48"
 48" x 96" (shown)
 48" x 120"
 48" x 144"
 60" x 60"
 60" x 96"
 60" x 120"
 60" x 144"
Pusher Interface:(4) sockets for rigid loop-type towing tongue, one each side.
Load retention device:(4) forged steel lashing rings; 15,000 SWL. each
Wheel Type:(4) S-MDD-124SYT70-4SL swivel casters
Finish:Safety Yellow with high visibility reflective conspicuity tape
Dimensional Drawing
2000 lb. Differential / Transaxle
36V - (3) 150Amp Batteries
5000 lbs Hydraulic Actuator Lift Kit
2:1 Gear Reduction with Chain to Drive Tires
Safety Stop Switch
(3) Solid Fork Truck Drive Tires
0-3 mph Fwd/Rev Variable Speed
15A Sealed Battery Charger
Adjustable Acceleration/Braking
Battery Discharge Indicator
Heavy Duty Steel Frame
Pintle Hitch
1 Year Limited Warranty
PDF Datasheet
Optional Upgrades
Flashing Light and Pole
Safety Horn
Maintenance-free Batteries (set of 3)
Sealed AGM Batteries (110 amp/hr)
Trojan Batteries - (6) 150Amp Batteries
9 Tooth gears (1.77 mph)
Dual Solid Drive Tires
Ball Hitch and Steel Mounting Bracket
Fully Enclosed Chain Guards
