Designed for proper balance and rigidly welded of high alloy steel tubing, Lite-N-Tuf® all-welded steel hand trucks embody Hamilton quality at a competitive price. Steel frames of 1 11/16" O.D. high yield tubing, red enamel finish (yellow on HM44-K and HM53-K), and vinyl handle grips are standard features on these models.
|
| SPECIFICATIONS (inches) |
| Model No. |
HM44-E |
HM44-K |
HM44-S |
HM52-B |
HM53-K |
| Height |
46 |
48 |
46 |
46 |
65 |
| Frame Width |
15 |
18 1/4 |
15 |
15 |
15 |
| Overall Width |
20 5/8 |
24 |
20 5/8 |
21 |
21 |
| Nose Depth |
8 |
6 3/4 |
8 |
8 |
9 |
| Capacity Lbs. |
500 |
500 |
500 |
500 |
500 |
| Weight Lbs. |
30 |
35 |
30 |
35 |
40 |
|
| |
|
|
|
|
|

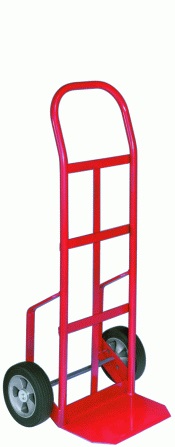

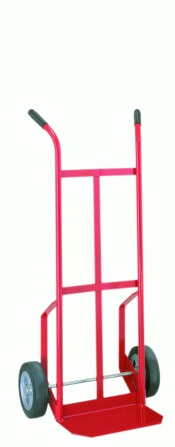

HM52-B and HM44-E hand trucks feature solid bar steel curb skids, beveled nose edges, strong "back-up" nose design, and extra large stair skids. The non-rotatable "D" axle (see detail) can be moved from one position to another without tools to accommodate 6", 8" or 10" diameter wheels. Choice of wheels listed below.
|
| |
|
|
|
|
|

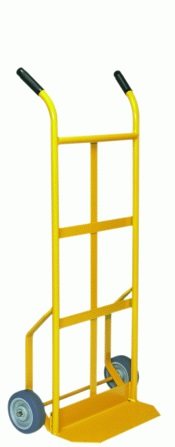

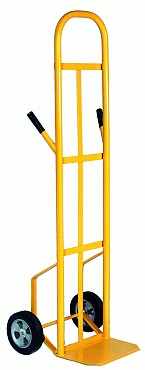

HM44-K is the widest model available and is furnished standard with 6" x 2" Versa-Tech® wheels. HM53-K features 8" x 2.50 Ace-Tuf® ball bearing wheels, and a 65" tall frame ideal for carrying bread racks or other bulky high loads.
|
| |
|
